PLENA Hardware Configuration

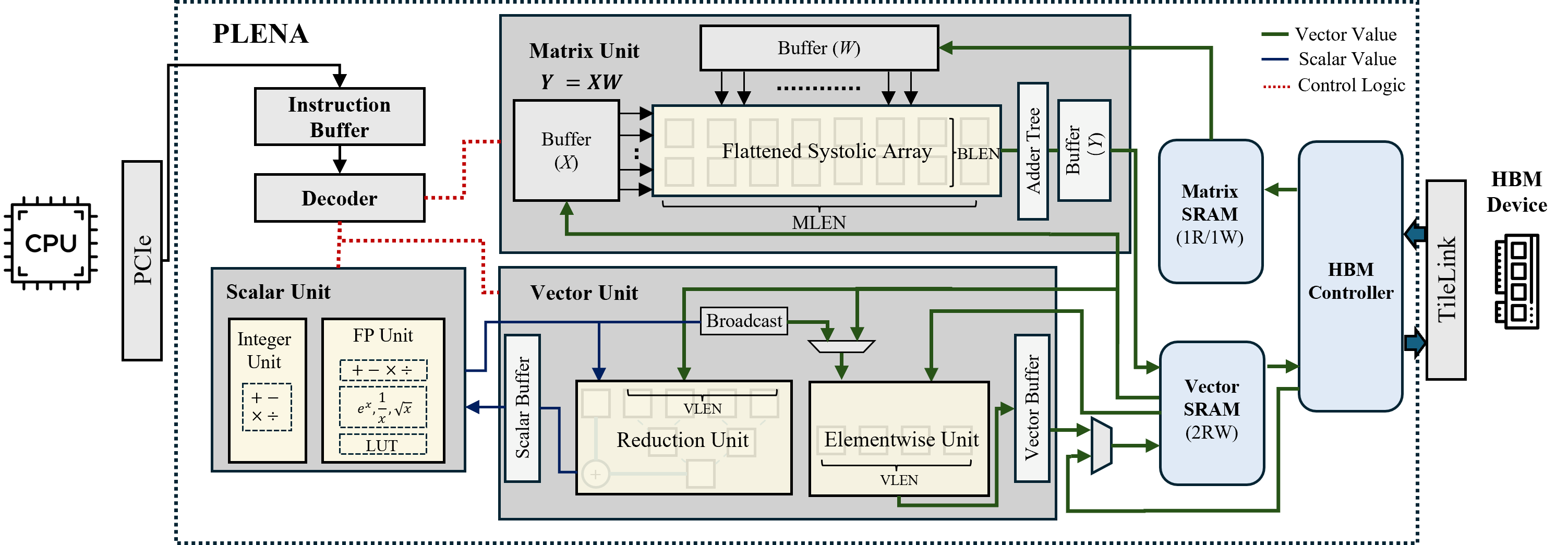

PLENA Accelerator Hardware Block Diagram

Architecture Overview

PLENA is composed of the following major components:

  • Matrix Unit: Handles GEMM, GEMV, and batched matrix multiplication (BMM) operations.
  • Vector Unit: Supports vector operations.
  • Scalar Unit: Supports integer and floating-point scalar operations, including special functions such as exp, reci, and sqrt.
  • Matrix SRAM: Stores matrix data and connects directly to the Matrix Unit. It supports both transposed and non-transposed reads.
  • Vector SRAM: Stores vector data and connects directly to the Vector Unit. It also acts as scratchpad memory for both the Matrix Unit and Vector Unit.
  • Integer SRAM: Stores integer data, primarily address-related data.
  • FP SRAM: Stores floating-point data and connects directly to the Scalar Unit.
  • HBM Controller: Manages HBM access, including prefetch and writeback operations, using TileLink as the protocol.

Compute Units

The compute subsystem consists of the Matrix, Vector, and Scalar units, orchestrated around a shared register file and parameterized by the core tile dimensions.

Matrix Unit

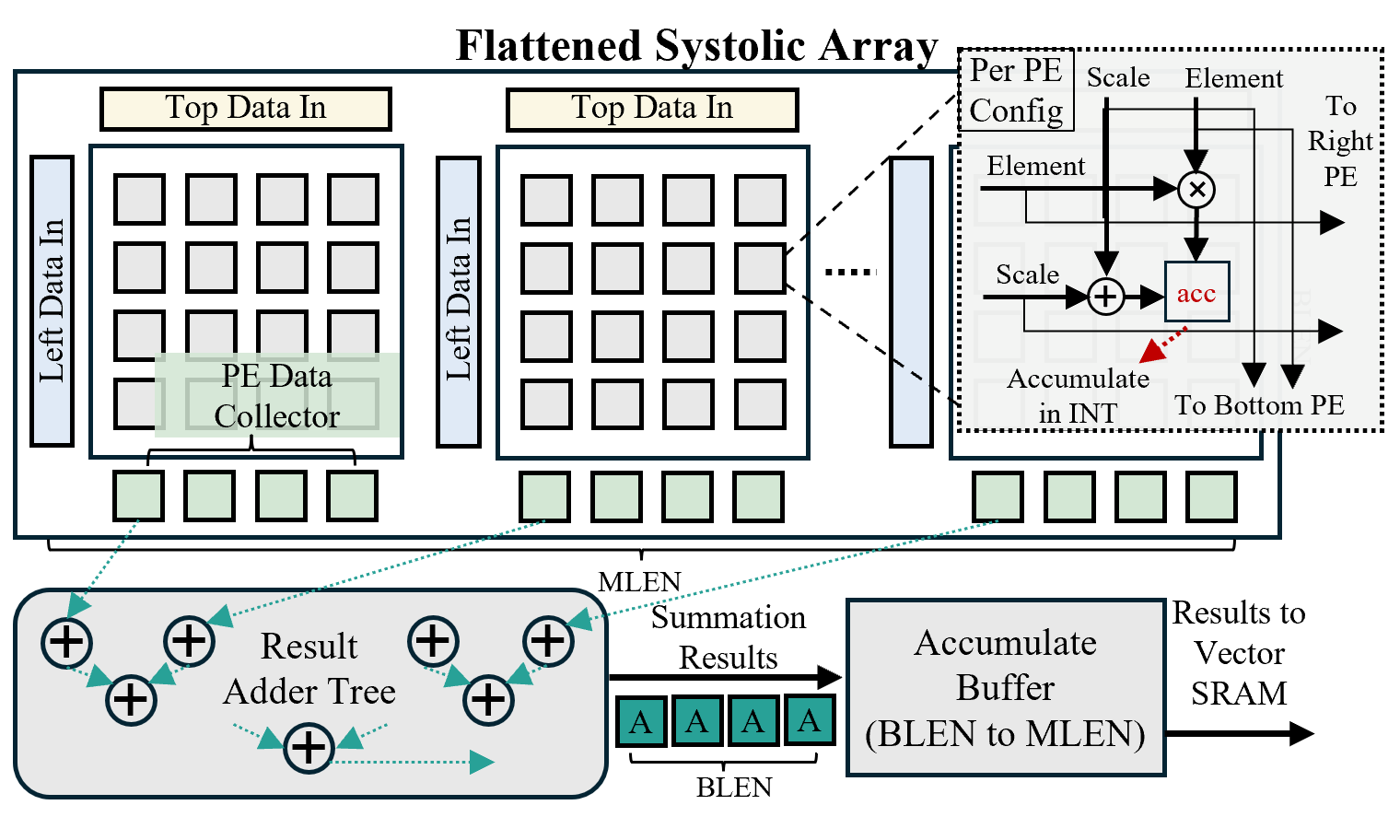

Flattened Systolic Array

The Matrix Unit is a systolic array that executes all dense linear-algebra primitives: GEMM (M_MM / M_TMM), GEMV (M_MV / M_TMV), and batched/partitioned matmul for multi-head attention (M_BMM / M_BTMM). Each GEMM call fetches a (BLEN, MLEN) tile from Vector SRAM and a (MLEN, BLEN) tile from Matrix SRAM, multiplies them, and accumulates the partial product inside the array. Results are drained to Vector SRAM in BLEN × BLEN chunks via M_MM_WO. The transposed variants (M_TMM, M_TMV) read the Matrix SRAM tile with a transposed address pattern, which lets the hardware consume HBM weights that are stored as W.T without an explicit transpose pass.

Relevant parameters:

  • MLEN — Size of a square weight tile and the inner (K) dimension of each matmul step. Also sets the length of the accumulator row used by M_MV / M_TMV.
  • BLEN — Output tile granularity. The array produces BLEN × BLEN results per drain and walks the K dimension in BLEN-column (or MLEN × BLEN-row, for transposed) strides.
  • HLEN — Head tile size for partitioned attention. M_BMM / M_BTMM run MLEN / HLEN independent matmuls in parallel along this axis, mapping multi-head batches onto the array.

Vector Unit

The Vector Unit operates on VLEN-wide vectors held in Vector SRAM and is responsible for all element-wise and reduction work that sits between matmuls: element-wise add/sub/mul with either another vector (V_ADD_VV, V_SUB_VV, V_MUL_VV) or a broadcast FP scalar (V_ADD_VF, V_SUB_VF, V_MUL_VF); element-wise nonlinearities V_EXP_V and V_RECI_V used by softmax, GELU, and layer norm; and cross-lane reductions V_RED_SUM and V_RED_MAX that collapse a VLEN-vector into an FP register. A mask register (C_SET_V_MASK_REG) can predicate any element-wise op, and an rorder flag lets V_SUB_VF run as scalar − vector for negation.

Relevant parameters:

  • VLEN — Width of every vector operation and the natural granularity for Vector SRAM addressing (all vector read/write addresses must be VLEN-aligned). It also fixes the reduction width of V_RED_SUM / V_RED_MAX.
  • BROADCAST_AMOUNT — Fan-out used when a single FP register is broadcast across the VLEN lanes in V_*_VF instructions.

Scalar Unit

The Scalar Unit handles control-flow arithmetic and the small amount of FP math that lives outside the vector lanes. It covers integer ops on gp0–gp15 (S_ADD_INT, S_ADDI_INT, S_SUB_INT, S_MUL_INT, S_LUI_INT) used for address computation and loop bookkeeping; FP ops on f0–f7 (S_ADD_FP, S_SUB_FP, S_MUL_FP, S_MAX_FP) plus the special functions S_EXP_FP, S_RECI_FP, and S_SQRT_FP that back softmax normalizers and RMSNorm scales; and loads/stores against two small scratch memories — INT_MEM (via S_LD_INT / S_ST_INT) for integer constants and FP_MEM (via S_LD_FP / S_ST_FP) for preloaded FP constants. S_MAP_V_FP is the bridge from FP_MEM into a VLEN-wide Vector SRAM row.

Relevant parameters:

  • INT_SRAM_DEPTH — Number of entries in INT_MEM; sized from num_hidden_layers × REPEAT_SETTINGS + FIXED_CONSTANT_NUM to hold all per-layer integer constants.
  • FP_SRAM_DEPTH — Number of entries in FP_MEM; must be at least 3 × MLEN + FP_CONSTANT_NUM to cover preloaded FP constants and staging space for S_MAP_V_FP.
  • 16 GP registers / 8 FP registers / 8 HBM address registers — Architectural register file visible to all scalar instructions (gp0 is hardwired to 0, f0 to 0.0).

Registers

There are three types of registers in the PLENA architecture: general purpose registers, floating point registers, and address registers.

General Purpose Registers

Mainly used for integer operations and address computation. - gp0-gp15: 16 general purpose registers - gp0 is hardwired to 0

Floating Point Registers

Mainly used for scalarFP operations. - f0-f7: 8 floating point registers - f0 is hardwired to 0.0

Address Registers

  • a0-a7: 8 address registers for off-chip memory access

Memory

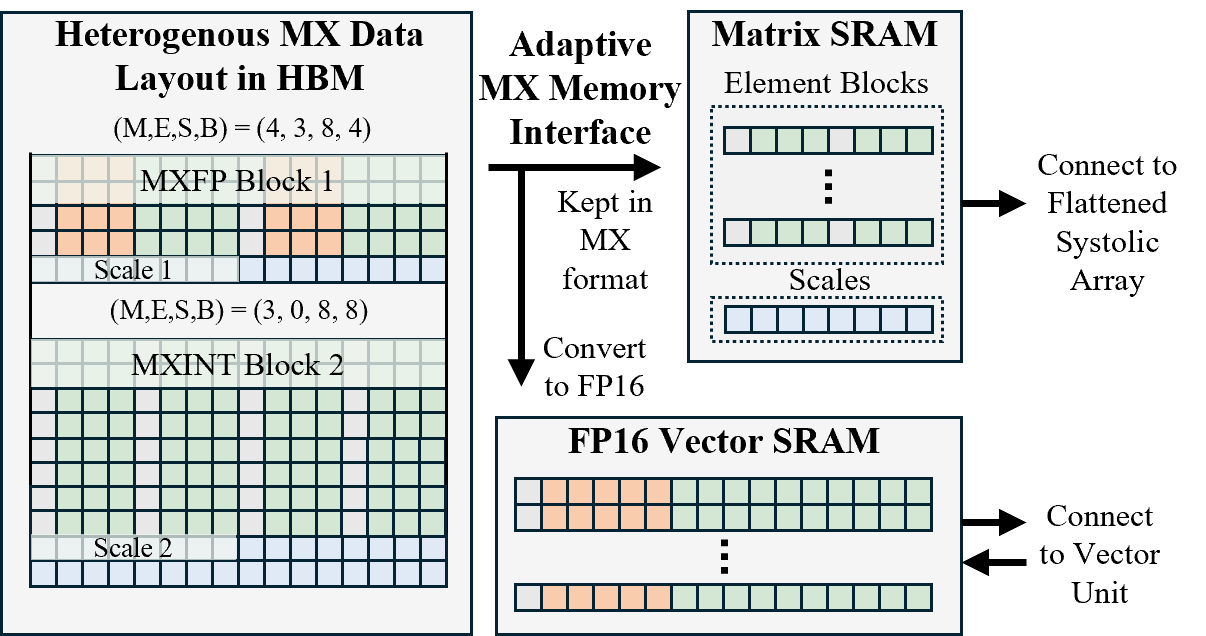

PLENA Memory System

The memory subsystem spans four on-chip SRAMs (Matrix, Vector, INT, FP) and off-chip HBM, linked by a TileLink-based memory controller that issues prefetch and writeback transactions on behalf of the compute units.

On-Chip SRAM

  • Matrix SRAM — Double-buffered weight and KV-cache store for tiles that are streamed in once per use and do not need to be kept hot. Load and drain ports operate concurrently, so the next tile can be prefetched from HBM while the current one feeds the systolic array. Its defining feature is a bank layout that serves both non-transposed and transposed reads at full bandwidth, letting M_TMM / M_TMV consume weights stored as W.T without a separate transpose pass and without duplicated storage or extra muxing.

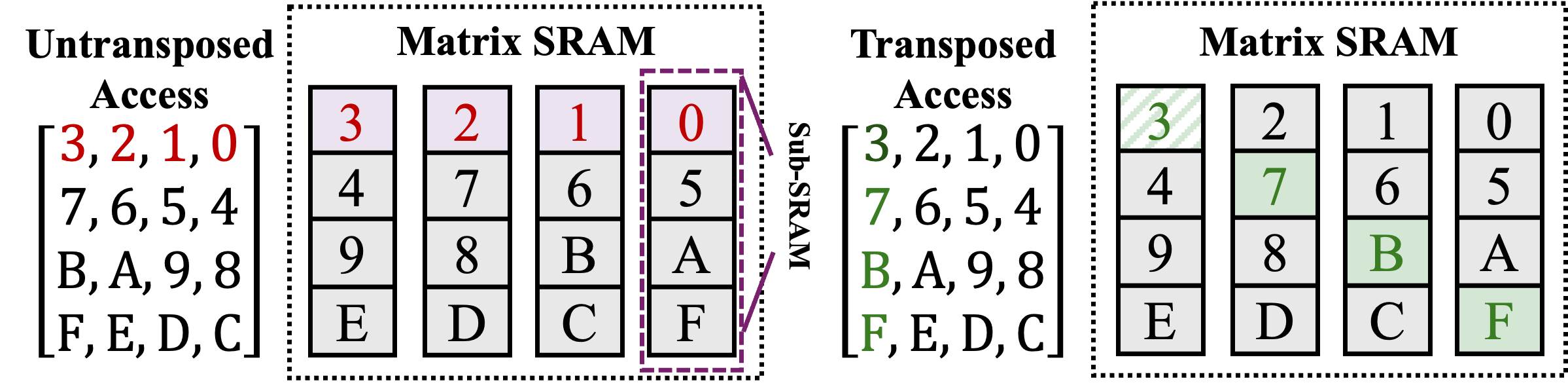

Matrix SRAM

  • Vector SRAM — Primary scratchpad for activations and intermediate results. It sinks the BLEN × BLEN drains from the Matrix Unit and all Vector Unit outputs, and is the only SRAM that participates in HBM prefetch/writeback for activation traffic. All accesses are VLEN-aligned.

  • FP SRAM (FP_MEM) — Small constant store for preloaded FP values (e.g. normalizer constants, e). Wired directly to the Scalar Unit through S_LD_FP / S_ST_FP, and bridged into Vector SRAM by S_MAP_V_FP. Depth is set by FP_SRAM_DEPTH.

  • INT SRAM (INT_MEM) — Small constant store for integer values used in address computation, such as per-layer base offsets. Accessed only by the scalar integer path via S_LD_INT / S_ST_INT. Depth is set by INT_SRAM_DEPTH.

On-Chip SRAM (Plain format)

Memory Format Type Description
Matrix SRAM Plain BF16 (E8M7) Weights after dequantization
Vector SRAM Plain BF16 (E8M7) Activations and outputs
Scalar FP Plain BF16 (E8M7) FP register file

Off-Chip HBM (MXFP format)

Data Type Format Element Scale Description
Weights MXFP E4M3 E8M0 8 elements share 1 scale
KV Cache MXFP E4M3 E8M0 8 elements share 1 scale
Activations MXFP E4M3 E8M0 8 elements share 1 scale
