Bitflip-Aware LoRA Fine-Tuning with FSDP2 (Llama-3-70B)

Bitflip-Aware LoRA Fine-Tuning with FSDP2 (Llama-3-70B)#

This tutorial covers bitflip-aware LoRA fine-tuning of Llama-3-70B using FSDP2 (torch.distributed.fsdp.fully_shard) and torchtitan model definitions. It scales the approach in Bitflip-Aware LoRA Fine-Tuning from a 7B–8B model to a 70B model on a small B200 node.

Note

If you have not set up the environment yet, follow Installation first. The FSDP2 path also requires a recent PyTorch nightly — see Step 0 below.

Overview#

The setup is the same as Bitflip-Aware LoRA Fine-Tuning:

  1. Random Bitflip Simulation — random bit flips are injected during the forward pass into both activations and weights of every Linear layer (except lm_head).

  2. Low-Rank Adaptation (LoRA) — small lora_A / lora_B matrices are attached to each Linear; only these are trained, the pretrained weights stay frozen.

The two differences from Bitflip-Aware LoRA Fine-Tuning are:

  • Model build path — instead of transformers.AutoModelForCausalLM, the model is built from torchtitan’s Llama-3 definitions on a meta device and then materialised; this is required to fit a 70B model under FSDP2.

  • Sharding — parameters, gradients, and optimizer state are sharded across GPUs with FSDP2 (fully_shard), with bf16 forward and fp32 reductions.

How It Works#

Each nn.Linear is replaced by a BitFlipLinearLora whose forward computes

\[Y = \text{bitflip}(X) \cdot \text{bitflip}(W + B \cdot A \cdot \text{scaling})^T\]

where \(X\) is the input activation, \(W\) is the frozen pretrained weight, \(A\) / \(B\) are the trainable low-rank matrices, \(\text{scaling} = \text{lora\_alpha} / r\), and \(\text{bitflip}(\cdot)\) applies random bit flips with configurable per-component probabilities.

The transform is applied by BitFlipLoRAConverter (from aixsim_models.bitflip.lora_finetune_fsdp.converter), which replaces all nn.Linear modules (excluding output / lm_head) with BitFlipLinearLora after the meta model is constructed and before FSDP2 sharding.

Entry Points#

File

Description

experiments/llm-bitflip/lora_finetune_fsdp/train.py

Standalone training script (torchrun + FSDP2, no HF Trainer / Accelerate).

experiments/llm-bitflip/lora_finetune_fsdp/eval.py

Forward-only eval (clean / --bitflip / --profile modes).

experiments/llm-bitflip/lora_finetune_fsdp/config_70b.toml

70B training + bitflip + LoRA configuration.

experiments/llm-bitflip/lora_finetune_fsdp/run.sh

Single-/multi-node torchrun launcher.

Step-by-Step Guide#

Step 0 — Environment#

FSDP2 (fully_shard) requires a recent PyTorch. This experiment carries its own torchtitan submodule pinned to commit 0e0590c1 at experiments/llm-bitflip/lora_finetune_fsdp/torchtitan/, so it does not share the project’s submodules/torchtitan pin (which is held back for the existing pretrain experiments). Initialise it and create the venv with:

git submodule update --init experiments/llm-bitflip/lora_finetune_fsdp/torchtitan
cd experiments/llm-bitflip/lora_finetune_fsdp
bash setup_env.sh
source .venv/bin/activate

setup_env.sh uses uv (the same tool used by the parent project) to create .venv pinned to Python 3.11, which is required because train.py / eval.py use the stdlib tomllib module (3.11+). Install uv first if you don’t have it (curl -LsSf https://astral.sh/uv/install.sh | sh); override the interpreter with PYTHON_VERSION=3.12 bash setup_env.sh if needed.

Note

train.py / eval.py add the repo’s src/ and the experiment’s torchtitan/ submodule to sys.path at import time, so the project does not need to be installed (pip install -e . not required). Just make sure PyTorch, Triton, and the other dependencies from setup_env.sh are available in the active environment.

Step 1 — Configure Bitflip, LoRA, and Training#

The 70B run is fully configured by a single TOML file (config_70b.toml):

[model]
flavor = "70B"
hf_model_path = "meta-llama/Meta-Llama-3-70B"

[training]
dtype = "bfloat16"
mixed_precision_param = "bfloat16"
mixed_precision_reduce = "float32"
seq_len = 2048
local_batch_size = 2
gradient_accumulation_steps = 4
steps = 20  # override with --steps for full run
lr = 2e-4
weight_decay = 0.01
warmup_steps = 100
max_norm = 1.0
log_freq = 5
save_freq = 500

[parallelism]
fsdp_degree = 4

[lora]
r = 32
lora_alpha = 32

[bitflip]
w_p_exp      = 1.52587890625e-05   # 0.5^16
w_p_frac     = 1.52587890625e-05   # 0.5^16
w_zero_out_t = 256.0               # > profiled |w| max (126.5)
x_p_exp      = 1.52587890625e-05   # 0.5^16
x_p_frac     = 1.52587890625e-05   # 0.5^16
x_zero_out_t = 8192.0              # > profiled |x| max (3680)
base_seed    = 0
skip_patterns = ["output"]         # lm_head is not perturbed
Key parameters#

Section

Parameter

Description

[parallelism]

fsdp_degree

FSDP2 shard size. 4 means parameters/grads/opt-state are sharded across 4 GPUs per replica.

[training]

mixed_precision_param / _reduce

bf16 parameters, fp32 gradient reductions — the standard FSDP2 large-model recipe.

[lora]

r, lora_alpha

LoRA rank and scaling (effective scaling = lora_alpha / r). r = 0 disables LoRA entirely (used by the no-LoRA bitflip eval).

[bitflip]

w_zero_out_t / x_zero_out_t

Thresholds above which a value is set to 0 after the flip — a guard against exponent-flip blowups. See Step 2 below.

[bitflip]

skip_patterns

Layer-name substrings to leave un-bitflipped. "output" excludes the lm_head.

Note

Bitflip probabilities must be a power of 0.5 (e.g., 0.5^16 ≈ 1.526e-5); the Triton kernel snaps to the nearest valid value. See Mase-Triton.

Step 2 — Profile and Set zero_out Thresholds#

zero_out thresholds must sit above the clean model’s legitimate range so that the clip catches only flip-corrupted blowups, never real signal.

Profile with eval.py --profile over a few dozen sequences:

torchrun --nproc_per_node=4 eval.py --config config_70b.toml \
    --num-samples 64 --profile

For Llama-3-70B (64 sequences, 131k tokens, 560 bitflip-eligible Linear layers) the profile is:

Activation / weight magnitude profile#

Tensor

p50

p99

p99.9

p99.99

global max

Activations (Linear inputs)

0.031

0.5

2

4

3680

Weights (.weight)

0.016

0.063

0.063

0.125

126.5

A few late-layer w2 inputs carry huge values (the “massive activations” seen in Llama-3) — these are legitimate, so the activation threshold must sit above 3680. The 70B config uses w_zero_out_t = 256.0 and x_zero_out_t = 8192.0.

Warning

An earlier config used w_zero_out_t = 1.25 and x_zero_out_t = 30. The profile showed these clip legitimate values, and a test run confirmed it: training loss exploded to 9.72 by step 5 (perplexity ~16,000) before any flip occurred. Always profile before changing thresholds.

Step 3 — Launch Training#

The full 70B run targets ~21,000 optimizer steps (≈ 1% of 70B parameters in training tokens, ≈ 700M tokens):

cd experiments/llm-bitflip/lora_finetune_fsdp
bash run.sh config_70b.toml

which expands to (single 4-GPU node):

torchrun --nproc_per_node=4 --nnodes=1 \
    --master_addr=localhost --master_port=29500 \
    train.py --config config_70b.toml

Note

--nproc_per_node must equal [parallelism].fsdp_degree in the config (4). FSDP2 builds a 1-D device mesh of that size and init_device_mesh requires the mesh to span exactly WORLD_SIZE ranks, so a mismatch aborts at startup. run.sh defaults to NPROC_PER_NODE=4 to match; to use a different GPU count, change both together.

To override the step count from the command line:

torchrun --nproc_per_node=4 train.py --config config_70b.toml --steps 21000

For multi-node, set MASTER_ADDR / NNODES / NODE_RANK env vars per run.sh usage notes.

Step 4 — Evaluate#

eval.py is forward-only and supports three modes:

# Clean baseline (no bitflip, no LoRA)
torchrun --nproc_per_node=4 eval.py --config config_70b.toml --num-samples 256

# Bitflip ON, r=0 (no LoRA), no retraining
torchrun --nproc_per_node=4 eval.py --config config_70b.toml --num-samples 256 --bitflip

# Profile activations + weights to choose zero-out thresholds
torchrun --nproc_per_node=4 eval.py --config config_70b.toml --num-samples 64 --profile

Evaluation is the first N sequences of the training set, seq_len = 2048 chunks, token-weighted mean cross-entropy; perplexity = exp(loss).

Results#

All numbers below are for meta-llama/Meta-Llama-3-70B (70B, bf16) on 4 × NVIDIA B200 with fsdp_degree = 4, training data Cheng98/fineweb-edu-1.25B.

Baseline — Clean Model#

Original model, no bitflip, no LoRA (logs/eval_baseline.log):

Sequences

Tokens

Loss (CE)

Perplexity

256

524,288

1.8198

6.17

Bitflip On, No LoRA, No Retraining#

Same 256 sequences, r = 0, seed 0, all 560 eligible Linear layers perturbed (logs/eval_bitflip.log):

Condition

Loss (CE)

Perplexity

Clean (reference)

1.8198

6.17

Bitflip — exp + frac, on weights & activations (0.5^16)

4.4918

89.28

Observations: Adding exponent-bit flips and activation flips degrades perplexity from 6.17 → 89.28 (~14×). The degradation is large but coherent — far from the ~16,000 of the bad-threshold run — so there is meaningful headroom for LoRA to recover.

Bitflip-Aware LoRA Retraining (lr = 2e-4)#

Training was run with r = 32, lora_alpha = 32, lr = 2e-4, warmup = 100, weight_decay = 0.01, seq_len = 2048, local_batch_size = 2, grad_accum = 4 (effective batch = 32 sequences). The original step budget was 21,000; training was stopped early at 7,900 steps once the loss had clearly converged — the run had already demonstrated that bitflip-aware LoRA scales to 70B with the same recipe used for 8B, so the remaining budget was not needed (logs/train_70b.log).

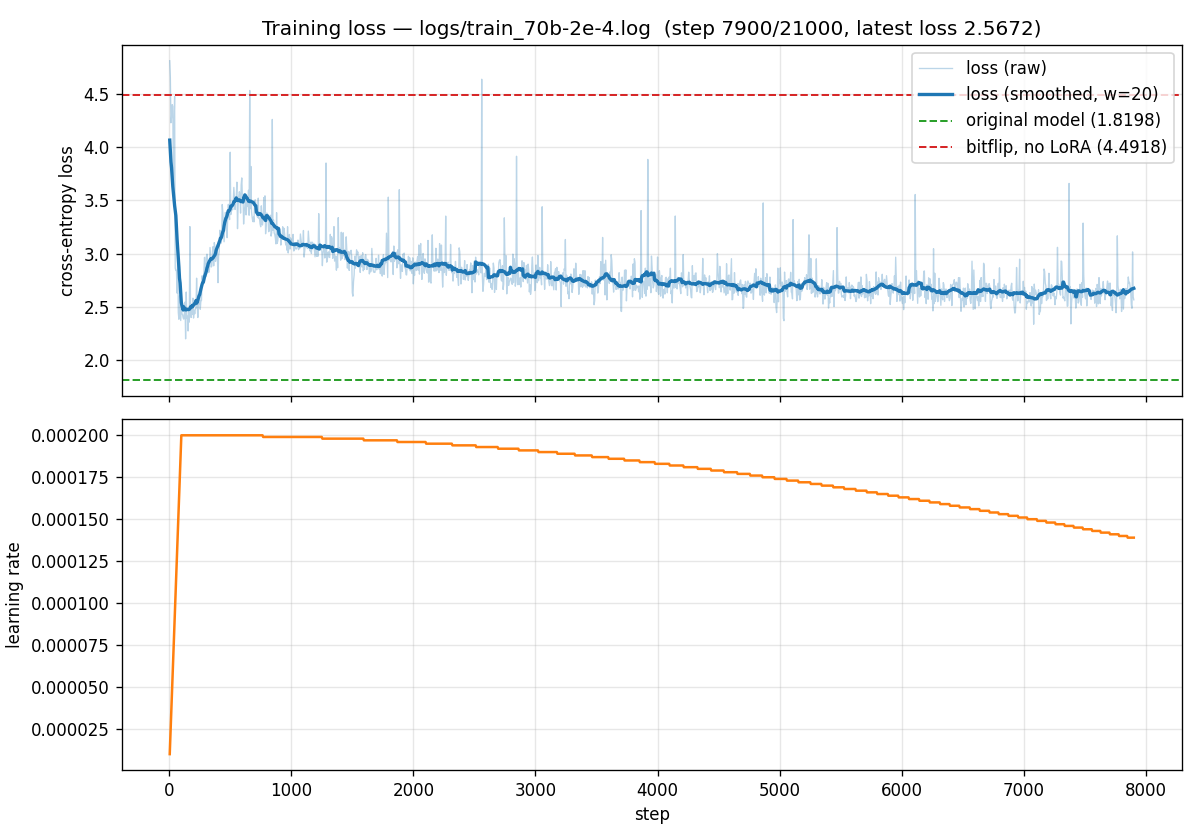

Bitflip-aware LoRA fine-tuning training curve for Llama-3-70B (lr=2e-4)

Training loss for the 70B run at lr = 2e-4 (early-stopped at 7,900 steps after convergence).#

Metric

Value

Training steps completed

7,900 (early-stopped; original target 21,000)

Final training loss

~2.5 – 2.7 (converged)

Tokens/s

~1,095

The headline result: with bitflip noise injected into every eligible Linear layer, training loss converges from the bitflip-only ceiling (CE ≈ 4.49 / PPL ≈ 89.28) down to ~2.5 – 2.7. The bitflip-aware LoRA recipe transfers cleanly from 8B to 70B without changes to the kernel, converter, or optimizer setup. Scaling up this experiment, e.g., a higher lora rank r with more fine-tuning steps or full fine-tuning with bitflip, is very likely to further recover the model performance.

Note

This is the only learning rate kept in this tutorial; other learning rates (1e-4, 1e-5) explored during sweeps are omitted.

Resources#

  • Training log: experiments/llm-bitflip/lora_finetune_fsdp/logs/train_70b.log

  • Training curve: experiments/llm-bitflip/lora_finetune_fsdp/logs/train_70b_loss.png

  • Baseline / bitflip eval logs: logs/eval_baseline.log, logs/eval_bitflip.log, logs/profile.log

  • Training config: config_70b.toml
